Brand Name : TUNSING
Model Number : DS002
Certification : ISO 9001 SGS Oeke-TEX
Place of Origin : China
MOQ : 100yards or 100 meters
Price : Negotation
Payment Terms : L/C, T/T, Western Union, Western Union
Supply Ability : 9900000 yards per day
Delivery Time : 3-7working days after received the payment
Packaging Details : 1rolls in one box,each with black PP bag
Color : Sky blue transparent
Melt Flow Index : 45±25g/10min(ASTM D1238-04)
Melting Range : 110-130℃(ISO11357)
Conventional Thickness : 0.05mm,0.08mm,0.10mm,0.12mm,0.15mm
Width Range : 5mm-1580mm
Proportion : 1.15±0.02g/cm³
Activation Temperature : 95-145℃ (Tunsing)
Operating Temperature : 110-170℃

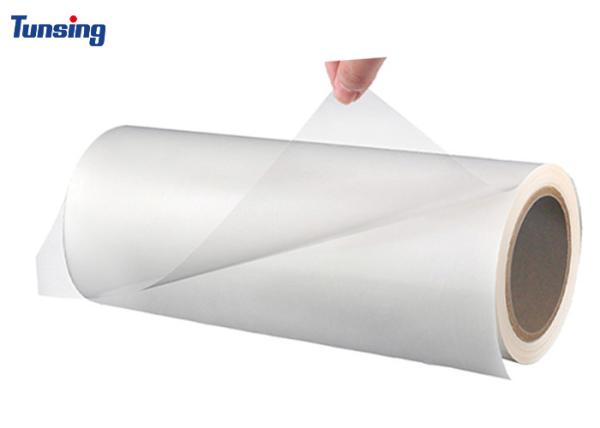

Washing Resistance to 40 Degree Double Sided PA Hot Melt Adhesive film for Embroidery Patch
Product:DS002
Despription:
This product is a thermoplastic film hot melt adhesive with the release paper, can be repeatedly heated and plasticized for bonding.This kind of hot melt adhesive has excellent for textiles(cotton,nylon,chemical fiber, blended fabric).This product has dry cleaning and 40℃ washing resistance.
Color | Light Blue Transparent | Release Protection | Glassine Release Paper |
Proportion | 1.15±0.02g/cm³ | Conventional Thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
Melting Range | 90-125℃ | Width Range | 5mm-1480mm |
Liquidity Index | 45±25g/10min | Conventional Width | 500mm,1000mm,1280mm,1480mm |
Activation Temperature | 95-145℃ | Finished Product | 500mm*100yards/roll |
First Lamination | Second Implanting | ||
Mechanical Mold Temperature | 110℃-160℃ | Mechanical Mold Temperature | 130℃-170℃ |
Time | 5-15 seconds | Packing Time | 8-25 seconds |
Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
Free sample:
We provide you free sample,and you need to pay the shipping cost.
Why should you choose us?
Our company was founded in 2007 and it has passed ISO9001:2015 quality management system certification, and all products in our company are up to RoHS,REACH, Oeko-tex, California Proposition 65, Halogen Test Report, PFOA, PFOS, PAHS, HBCDD and other environmental standards.
Application:
DS002 is applied to clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
Customer Feedback:
Shipping & Packing:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on) and by air, 30-40 days by sea
![]() |
Double Sided PA Hot Melt Adhesive Film Washing Resistant 40 Degree For Embroidery Patch Images |
