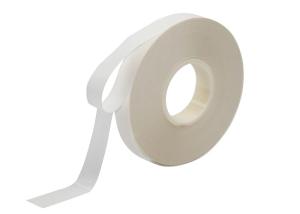

Polyamide PA Hot Melt Adhesive Film Suppliers Light Yellow For SIM Card

  • 1
  • 2

Brand Name : TUNSING

Model Number : DS-4

Certification : RoHs, REACH,

Place of Origin : China, Shenzhen

MOQ : 100 yards

Price : USD 19-22per yard

Payment Terms : T/T

Supply Ability : 3000kg per day

Delivery Time : shipped in 3-5days after payment

Packaging Details : 1 roll in per carton, 100 yards in one roll

Keywords : Hot Melt Adhesive FIlm

Colour : Light Yellow

Melt Point : 70-95℃

Liquidity Index : 75±25g/10min

Proportion : 1.08±0.02g/cm³

Hardness : 58±2

Finished Product : 0.055mm*29.2mm*200m

Contact Now

Double sided Polyamide PA Hot Melt Adhesive Film for SIM Card

Hot Melt Adhesive Film Description
The hot melt adhesive is used for embedding of contact smart cards. Excellent adhesion to PVC, FR-4 and other materials.This product belongs to hot-melt tape with low and medium temperature properties. Very strong cohesion and good flexibility to ensure that no structural fracture will occur in the thrust and bending tests after bonding, while maintaining a balanced bond strength with the chip and the card base, and has excellent punchability. Meet the requirements of ISO7816 standard for chip package fastness.

Hot Melt Adhesive Film Technical Parameters:

Colour

Light Yellow

Release Protection

Glassine Release Paper

Proportion

1.08±0.02g/cm³

Conventional Thickness

0.055mm±0.008mm

Melting Range

70-95℃ (Tunsing DSC 214)

Conventional Width

29.2mm

Melt Flow Index

75±25g/10min(ASTM D1238-04)

Conventional Length

200m

Hardness

D 58±2 (Shore )

Finished Product

0.055mm*29.2mm*200m

Hot Melt Adhesive Film Technical Parameters:

Mechanical Mold Temperature

140℃-160℃

Mechanical Mold Temperature

160℃-180℃

Adhesive Time

0.6S-1.2S

Packing Time

0.6S-1.2S

Pressure

0.25-0.4mpa

Pressure

0.25-0.4mpa


Hot Melt Adhesive Film Application




Customer feedback


Hot Melt Adhesive Film Package
It can ship by FedEX. It will need 5-7 days at usual. Also can by sea and air.
20-30m free sample for you to testing, you just pay to the shipping fee.
